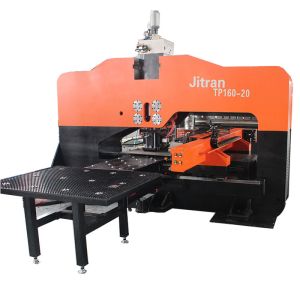

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

Product Categories
Qingdao Puhua Heavy Industrial Machinery Co., Ltd.
Contact Now

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

Brand Name : PUHUA

Model Number : AMD-HB

Certification : CE ISO

Place of Origin : CHINA SHANDONG

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 50+SETS+per year

Delivery Time : 20-40 workdays

Packaging Details : Stretch film

type : cnc punching machine

Power Source : electric

Application : sheet metal punching

color : customizable

power : customizable

Warranty : One Year

Punch force : 160t

Contact Now

160T 25mm Thick Plate Sheet Metal Hole Punch Cnc Punching Machine

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

AMD-HB Thick Plate CNC Punching Machine Main Features

• Using in-line type die set which researched and developed by our company, matching with thick plate stamping dedicated mould, the processing sheet thickness can up to 16mm;

• Equipped with high precision hydraulic main transmission system, speed is faster, stroke is adjustable;

• Adopts Siemens CNC special system and match up digital AC servo motor to make it faster and reliable, operation is easy, no need manual programming and processing, with the second positioning function, can achieve no dead zone processing;

• Equipped with concentrated lubricating device, reduce each kinematic pair friction, improve machine service life.

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

Type
AMD-HB40
AMD-HB50
AMD-HB60
AMD-HB80
AMD-OHB80
AMD-OHB100
AMD-OHB120
AMD-OHB160
Punch force
40T
50T
60T
80T
80T
100T
120T
160T
Machine structure
open type
closed type
Max.Processing thickness
35mm
Working
Range
1500*800mm/3000*1600mm
Clamp
amount
2-3pcs
Punching
frequency
120HPM
80HPM
80HPM
80HPM
80HPM
60HPM
Turret
speed
≤40m/min
Processing
precision
±0.15mm
Air Ventilation
0.1m³/min
Air
pressure
0.5MPa(5.0kgf/cm²)
Power
380V±5%/50HZ
Number of stations in turret
3-12pcs(Optional)

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

Maximum thickness 35mm

Using in-line type die st which researched and developed by our company,matching with thick plate stamping dedicated mould. the processing sheet thickness can up to 35mm.

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

AC servo motor

Using ESTUN servo motor, fast speed, fast response, simple operation, without manual programming, one-key operation.

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine

160T 20mm Metal Plate Hydraulic Type CNC Punching Machine
